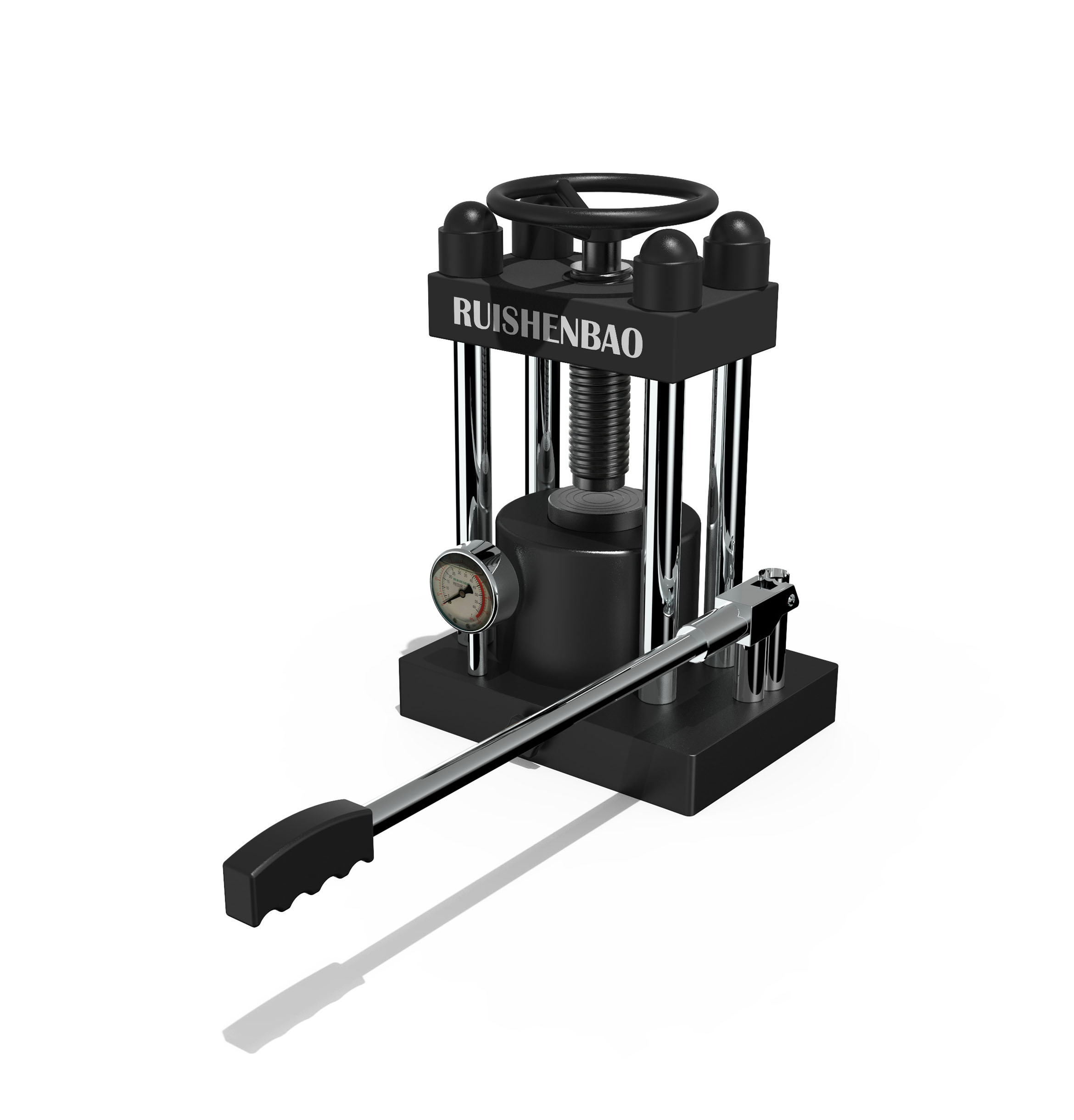

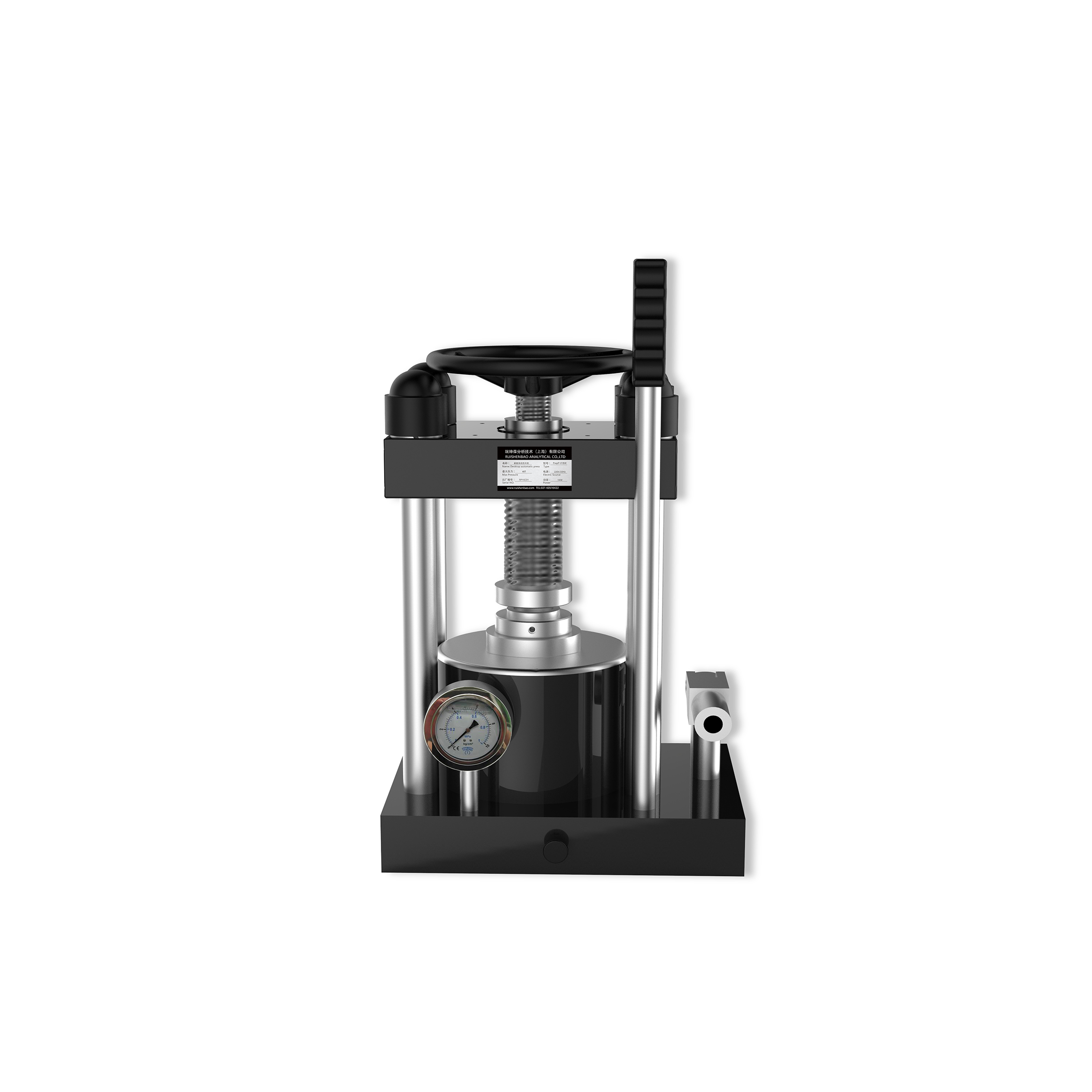

Ultra Light Pellet Press: PrepP-01L

The PrepP-01L is a manually operated hydraulic press with particularly simple and safe operation. With the pressure force of 20T it is suited for the preparation of solid samples for XRF or IR analysis. The pellets produced are of high quality and are characterized by their high degree of stability. The piston pressure can be read off from the clearly visible manometer scale. Its main body adopts ultra-light and superhard materials. Net weight is only 25kg to easily carry; it is more suitable for field application. Advantage

Maximum pressure 20T, with high quality and stability;

Easy and safe operation;

Compact benchtop unit;

Practical for in-lab and field application;

Equipped with pressing tool made of superhard and wear-resistant special steel, long service life.


Security
■ Application area

Geology: ore, dust, slag;

Kiln: cement, limestone, dolomite, glass, quartz, clay;

Iron & steel: iron ore, coal, converter slags, blast furnace slags, electric furnace slags;

Nonferrous: alumina, bauxite, copper ore;

Chemicals: catalyst, polymer;

Soil: rock, various soils;

Research Institutes: manufacture of reference materials.


■ Technical parameter

Model

PrepP-01L

Maximum pressure

20T, hydraulic press with manual operation

Pressure force

0~20T

Operating temperature

0~40℃

Precision of pressure adjust

0.1T

Hydraulic oil

Antiwear hydraulic oil 46#

Dimensions(L×W×H)

300×250×600mm

Net weight

25Kg
