? The whole frame is made of aviation aluminium materials, light weight;
? Powerful and quick grinding, suitable for long-term trials;
? Wide range of materials for contamination free grinding, frequency control;
? Unique adjustable counterweight and imbalance sensor for unsupervised operation;
? Safety lock for safe operation;
? Touch-screen programmable controls, particularly easy-to-use
? Easy cleaning of the grinding elements
? 2 different grinding modes (dry and wet).
? Grinding jar and jar cover are provided with grip edge for easy operation; There is gap between the edge of the pot and the cover to facilitate opening.
? Geology: ore, dust, slag;
? Kiln: cement, limestone, dolomite, glass, quartz, clay;
? Iron & steel: iron ore, coal, converter slag, blast furnace slag, electric furnace slag;
? Nonferrous: alumina, bauxite, copper ore;
? Chemicals: catalyst, polymer;
? Food and pharmaceutical industry: vegetable, tablet;
? Research Institutes: manufacture of reference materials.

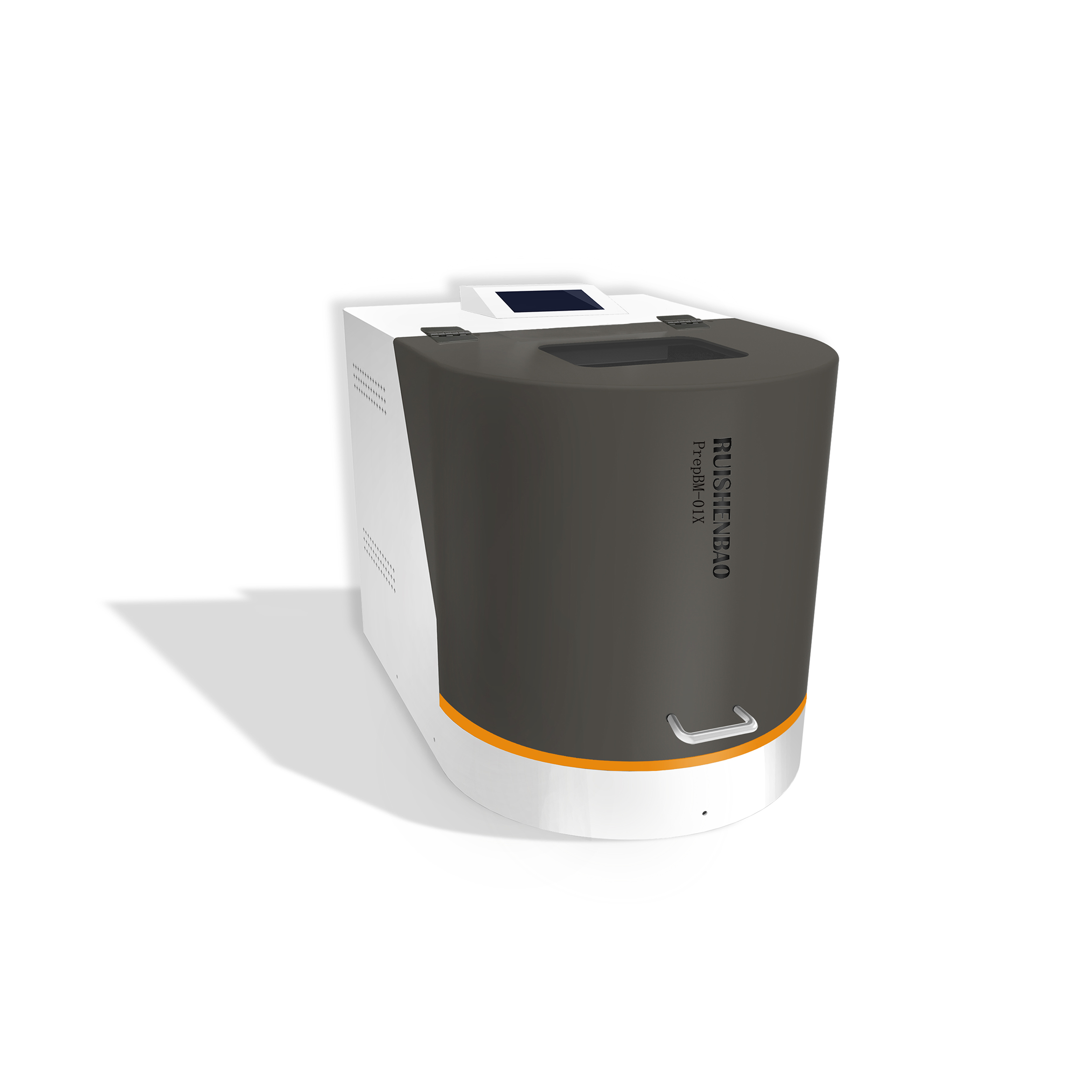

Model | PrepBM-01X |
Rotational speed | Revolution: 0-550rpm, rotation: 0-1100rpm, frequency control |
No. of grinding stations | 1 |
Feed material | Soft, hard, brittle, fibrous - dry or wet |
Material feed size | ＜8mm |
Final fineness | Nano range(depend on material of sample) |
Material of grinding tools and jars | Hardened steel, stainless steel, tungsten carbide, agate, sintered aluminium oxide, nylon, PTFE, polyurethane, zirconium oxide, |
Maximum grinding jar sizes | 125mL, or other as required |
Electrical detail | AC 220V±10% 1-phase, 50/60Hz, 1.5kW |
Dimensions(L×W×H) | 550×360×450mm |
Net weight | 30kg |
Category of grinding jars
Category | Specifications （Volume: L ） | |||||||||
Agate | 0.05 | 0.1 | 0.25 | 0.5 | 1 | 2 | ||||
Stainless steel/Chromium steel/Tungsten carbide | 0.05 | 0.1 | 0.25 | 0.5 | 1 | 2 | 3 | 4 | 5 | 15 |
20 | 25 | |||||||||
Nylon | 0.1 | 0.25 | 0.5 | 1 | 2 | 3 | 4 | 5 | 10 | 15 |
20 | 25 | |||||||||
Polyurethane | 0.25 | 0.5 | 1 | 2 | 4 | 5 | 7 | 12 | 16 | |
Corundum | 0.05 | 0.1 | 0.25 | 0.5 | 1 | 2 | 5 | |||
Zirconia | 0.05 | 0.1 | 0.25 | 0.5 | 1 | 2 | ||||
PTFE | 0.1 | 0.25 | 0.5 | 1 | 2 | 3 | 4 | 5 | 10 | 15 |
20 | 25 | |||||||||
Alloy steel | 0.5 | 1 | ||||||||
