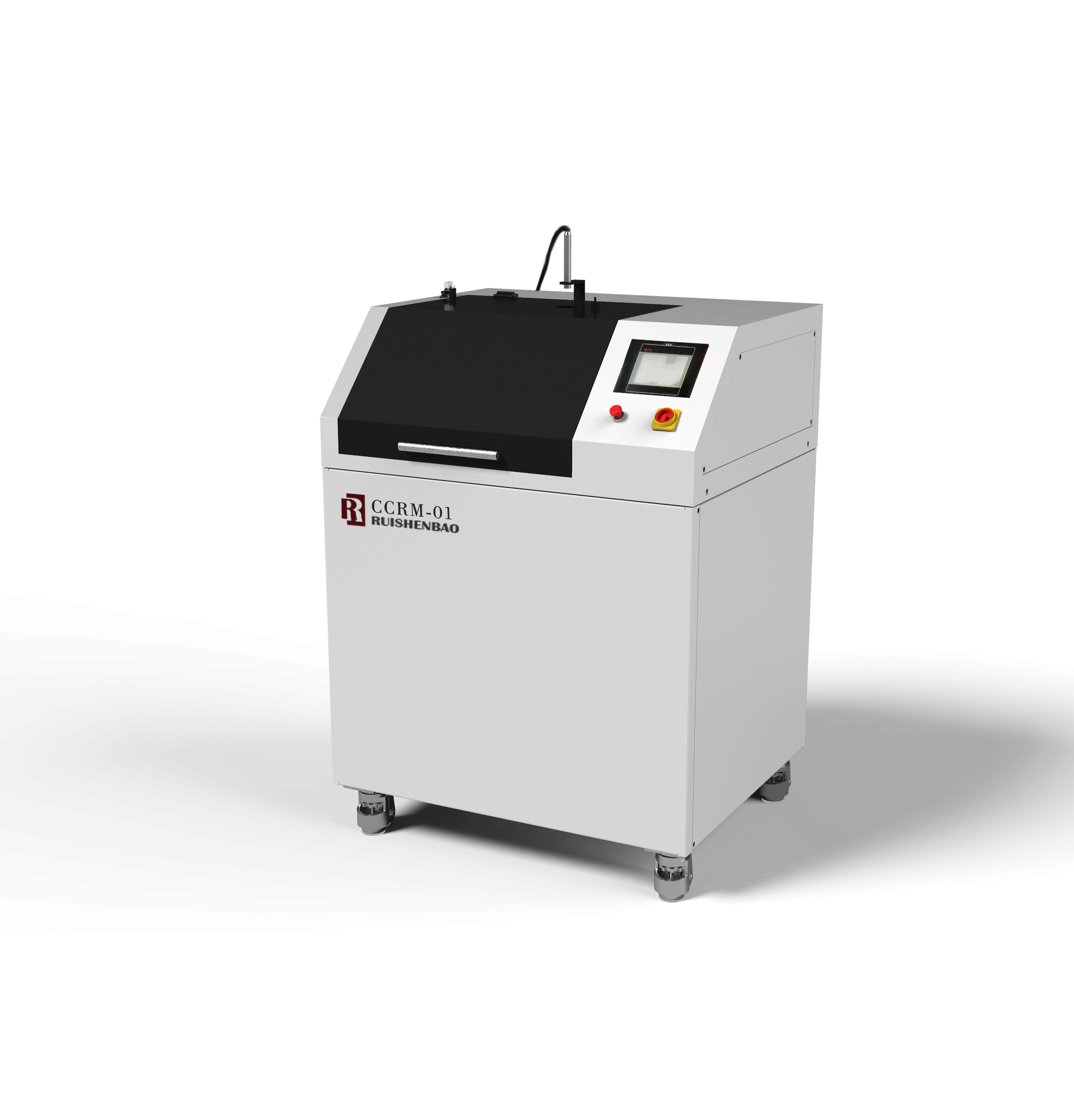

Centrifugal casting machine CCRM-01, is a special equipment for iron remelting, cast iron remelting and metal remelting samples used for X-ray fluorescence spectrometer and direct reading spectrometer analysis by Ruishenbao Analytical Technology (Shanghai) Co., LTD. It can be used for re-melting powder granular and columnar samples (including fe - Ni - Cu - Al - Co - base etc.), It can also be used for smelting formula and internal standard sample. The remoulded samples are cast into a special mold by centrifugal rotation, During the process, vacuum can be selected, protective gas can be injected, etc. The whole process is fully automated, and the high-quality samples produced are bubble-free, sample is uniform, the process is free of oxidation and loss, and the reproducibility is good. The machine has rational structure, uses the high frequency induction heating technology, with extremely high heating rate, at the same time equipped with a high precision infrared temperature measurement system with real-time temperature measuring and combined with Ruishenbao remains high precision temperature control of proprietary technology to ensure that the molten sample temperature accuracy and reproducibility of the process. Intuitive touch screen design, friendly man-machine interface, simple operation, PLC intelligent control of the whole machine control center, so that it has a high degree of automation, stability and flexible operation characteristics. The design of high frequency rapid heating combined with complete temperature control (optional) motion shake safety mechanism makes the equipment show high efficiency and stability characteristics in the casting sample, with superior performance in various indicators, and also improves the user's operation experience¡£The material or shape of crucible and mould for this remelter is based on rich experience in producing melting sample equipment and absorbing other advanced and mature experience to select design and production. Some components are selected according to actual needs, which not only saves cost, but also can meet the requirements of different customers for rapid sample making. Advantage

1.repeatable£ºThe touch screen +PLC controller is adopted to realize automatic control of melting power heating time and centrifugal speed, and to the maximum extent, the whole process of one-key control and full automation of the sample melting process are realized, and the sample making process is precisely controlled, with good sample making reproducibility.

2.High-quality£ºThe advantage of centrifugal casting method is that the gas in the mold can be removed to make the sample compact without bubbles, and the sample distribution is uniform.The vacuum plus argon gas (optional) can prevent oxidation and loss of the sample and ensure the sample.

3.temprature controllable£ºPreset the heating or cooling program (optional), the equipment will automatically conduct the  heating and melting process in accordance with the set program. Infrared temperature measurement feedback adjustment is adopted in the process to meet different melting conditions of various samples.

4. Accuracy: All operation functions including vacuum control (optional), gas flow rate, heating high frequency control, heating melting time, holding time, casting time and cooling water flow can be safely controlled, and operation parameters can be accurately displayed.

5. Safety£ºWith over current overload over voltage short circuit and other protection functions, to protect equipment and personnel safety.

6. Creativity: each functional system can be selected, according to the actual needs to choose suitable system combination.
